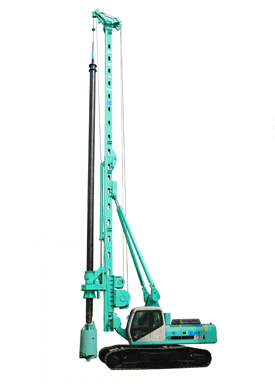

SH36 is a new type of piling machine with big triangle structure,which combines the new technology and process of the modem hydraulic piling machinery. So,its performance reaches or exceeds the advanced level of the same products in the world,meanwhile, the whole machine with easy operation and high working efficiency is capable of digging deep pit due to its many international brand key accessories.
SH36 is widely applied to the construction of high buildings, bridge,water conservancy and so on and especially proper for the complex geological layers containing much water.SH36 is an ideal equipment for all kinds
foundation construction.
| Type | Crowd winch type | Crowd cylinder type |
| Drilling tower | Drilling tower | |
| /Height of tower (mm) | 27400 | 27400 |
| Weight of base machine (without drilling tools) (kg) | 95000 | 94000 |
| Crowd system | ||
| Stroke(mm) | 11000 | 6000 |
| Pressure force(kN) | 300 | 300 |
| Pulling force(kN) | 300 | 300 |
| Main winch | ||
| Single line pull (kN) | 300 | 300 |
| Rope diameter (mm) | 36 | 36 |
| Line speed max. (m/min) | 60 | 60 |
| Auxiliary winch | ||
| Single line pull (kN) | 75 | 75 |
| Rope diameter (mm) | 18 | 18 |
| Line speed max. (m/min) | 45 | 45 |
